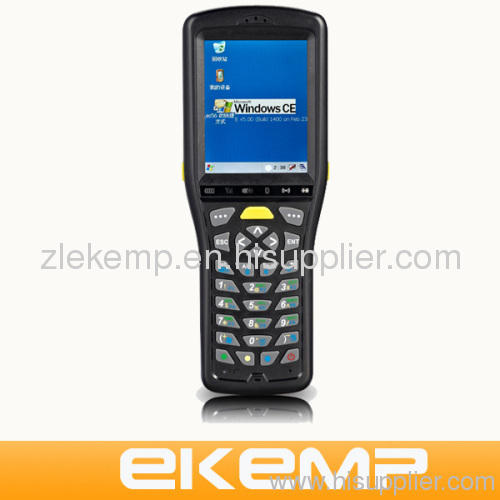

RFID Reader&UHF RFID scanner with GSM/GPRS/Bluetooth from China manufacturer

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: EM600

Production Capacity: 1000 pieces per week

Delivery Date: depends on order

Processor Type: ARM920T 400MHz

Screen Size: 2.8 inch TFT-LED QVGA Touch...

Color: Black

Barcode scanner: Laser scanners(Symbol Scan ...

Mini-USB: USB2.0

Means of Transport: Ocean,Land,Air

Packing: new in factory boxes

Operating System: Win CE

Style: Handheld Computer

Weight: 320g(with battery)

Product Size: 178*66*31mm

Protection grade: IP54

1,RFID Reader&UHF RFID scanner
2,CPU:ARM920T400MHz
3,Barcode Scanner.
4,GPRS,GSM,GPS,Bluetooth
5,IP54

RFID Reader&UHF RFID scanner with GSM/GPRS/Bluetooth (EM600)

	ARM920T@400MHz
Operate system	Microsoft Windows CE 5.0(Multi-language operating system)
RAM	64 MB or 128MB
ROM	128MB or 256MB or 512MB (standard configuration is 128MB )
display screen	TFT-LED QVGA Touch Screen
	QVGA(240x320)
	Screen of size 2.8 inch
soft keyboard	English,spell, handwriting
hard keyboard	28 letters and number
scan start key	middle+side key
voice	0.5 w loudspeaker,trembler
Expansion	GPRS SIM card slot
	Micro SD/TF slot
	USB Communication port
	RS232, RS485 Communication port
Communication	WIFI:802.11b/g wirelesss communicate function, and speed is 54MB/second, CISCOAF is supporting completely, as well as safety code
	BLUETOOTH V2.1+EDR
	GPS fix: channel 48, fix precision less than 2.5m,speed precision less than 0.01m/s
	Low Frequency(125KHz/134.2KHz)/ High Frequency(13.56MHz)/ UHF(860-960MHZ)
	Wireless network communication of GSM/GPRS module,support of GSM/GPRS Class10,GSM27.10 many road used
	INFRARED Communication(remote meter reading of electric power and set the parameter)
Sealed Standard	IP54
weight	300g( contain battery)
The anti-knock high of fall to the ground	It can bear many pounds that is from 4 inch(1.2 m) high to ground
Operate system	Misrosoft Windows CE5.0
Support language	C++,C#,.NET
Develop tool	Visual studio 2005/2008 support software development kit(SDK)

Data Collection (UHF,HF,LF)

UHF RFID(configuration of you selected)		High frequency RFID
UHF	Work frequency(840-960MHz make of your required)	frequency	13.56M
	European frequency(865-868MHz)	standard	ISO14443A/14443B/ ISO15693
	Standard of others national frequency(make of your required)	Distance	0mm-80mm (basic of your tag)
standard agreement	EPC C1 GEN2/ISO18000-6C(6B)	Low frequency RFID(configuration of you selected)
Reading distance	from 80cm to 250cm	Work frequency	125KHz/134.2KHz
Reading distance	from 80cm to 250cm	Standard agreement	11784/85,14223
Antenna parameter	Small antenna of level four(4dBi)(2dBi)	Frequency	Support 134.2KHz TI or 125KHz HitagS or 125KHz Tk5567 or 125KHz Em4100 or 125KHz EM4469 and so on
External port	USB2.0(standard configuration),RS-232(configuration of your selected)	Read and spot ranges	0~8cm

(Scanning and INFRARED)

Barcode Scanning		INFRARED
Engine	Laser scanners(Symbol Scan Engine)	Middle frequency of INFRARED	38KHz
Reading Distance	10cm-70cm(basic of your tag)	Incident angle	±45°C
Codes	One-dimensional: Code128.EAN-13,EAN-8,Code39,UPC-A, UPC-E,Codaba,China post25,interteaved 2 of 5,SBN/ISSN.Code93 and so on	Send and receive ranges	0-10m (Indoor)
